Management profiles

Introduction

Management profiles are how to configure NAV with the necessary credentials and options to manage networked devices. You may require multiple management profiles to manage all your devices. They are created and edited in the “management profile” tab in the SeedDB tool, available from the Toolbox.

The simplest scenario is the one where all your network devices support SNMP, using the same community, and you only need to fetch data, not send configuration changes, from NAV. In this case, you need only a single management profile, to define the SNMP community used on your devices, and then you will assign this profile to all your devices in the SeedDB tool.

An IP device can be assigned multiple profiles as well. A common scenario for this is a device you wish to make configuration changes on, either through PortAdmin or Arnold. Typically, you will create one management profile with the read-only SNMP community, which NAV will use for all operations where it only needs read access to the devices. You will need to create a second management profile containing an SNMP community that will give PortAdmin write access to the switch, and the Write checkbox will need to be checked on this profile.

Supported profile types

Traditionally, NAV only supported SNMP, but as of NAV 5.1, this changed.

SNMP

NAV currently supports SNMP versions 1 and 2c, which can be selected from the Version dropdown in the management profile form.

Checking the Write checkbox will tell NAV that the community configured in this profile will provide NAV with write access to the devices it is assigned to.

Otherwise, the procedure for creating an SNMP profile is documented in the Getting started guide.

NAPALM

NAV can use the NAPALM library to manage some devices, using NETCONF or other underlying protocols. As of NAV 5.1, these profiles are only used to configure Juniper switches in PortAdmin, as Juniper does not support SNMP write operations for modifying device configuration.

Adding a NAPALM profile looks like this:

These fields can be configured:

Driver: The NAPALM “driver” to use for communication. This is usually vendor specific. Currently, only the JunOS driver can be selected, since Juniper is the only platform NAV needs NAPALM on.
Username: Which username to access the switch with. The JunOS driver uses SSH, so this would be an SSH user that can run netconf commands on the switch.
Password: The SSH password for this user.
Private key: An SSH private key that will give SSH access as the configured user. If filled out, the password is assumed to be the passphrase to unlock the key itself. Leave password empty if the key doesn’t have one.
Use keys: If checked, the JunOS driver will use the SSH keys available in the file system of the NAV web server for authentication. This usually means that the keys must be present in the home directory of the user running the NAV Django application, in ~/.ssh/.
Alternate port: If access to the switch is not on the default port (22, in the case of the JunOS driver), put the alternate port here.

HTTP APIs

As of NAV 5.12, HTTP API profiles are used to configure access to services of the following devices.

Palo Alto PAN-OS firewalls: A HTTP API profile is needed for NAV to access the firewall’s ARP information.

Warning

The Palo Alto ARP implementation in NAV does not currently verify TLS certificates when accessing a Palo Alto API. This will be changed at a later date, but if it worries you, you should not configure any netboxes to use the Palo Alto Arp service yet.

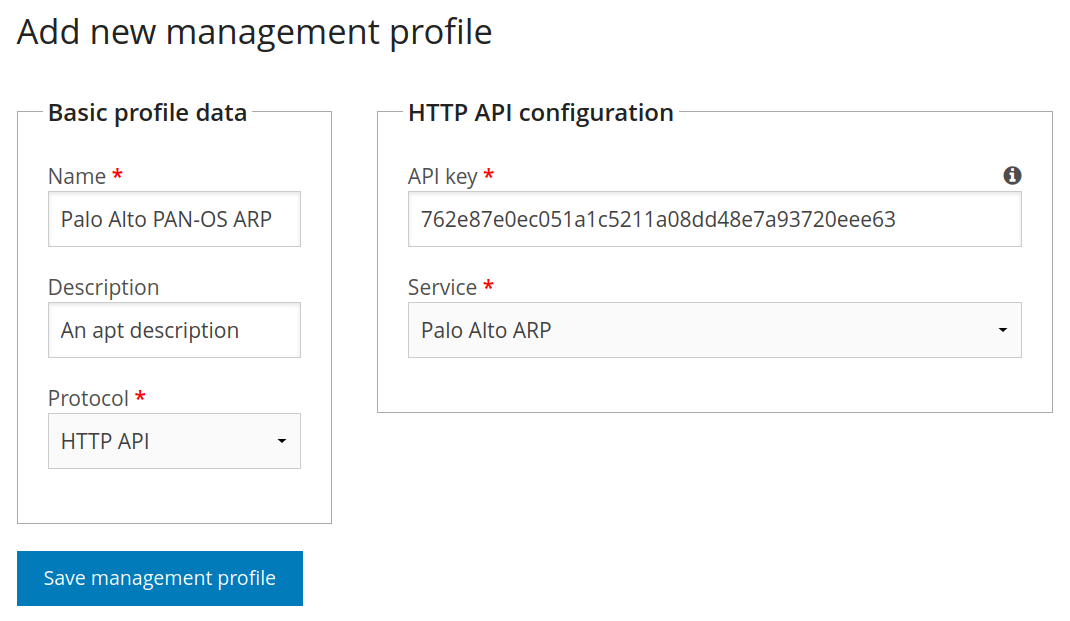

If you have a Palo Alto firewall running on a netbox managed by NAV, with a secret API key of 762e87e0ec051a1c5211a08dd48e7a93720eee63, you can configure NAV to fetch ARP information from this firewall by creating a new management profile with

protocol set to HTTP API,
API key set to 762e87e0ec051a1c5211a08dd48e7a93720eee63,
service set to Palo Alto ARP,

and then add this management profile to the netbox.
